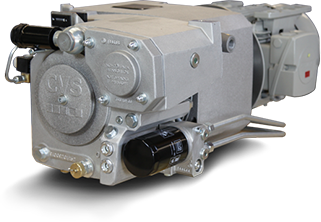

Rotary-vane compressed-air systems

Rotation compressors are also called rotary piston, rotary vane, multi-cell or sliding vane compressors. They are rotating displacement machines.

The rotor with its vanes, placed eccentrically in the housing, forms the central element.

If the rotating speeds are sufficiently large, the vanes are moved outward by the centrifugal force. Together with the rotor and the housing, they form sickle-shaped cells. These cells enlarge (suction area) and reduce periodically (compression area) with every turn.

The cell is closed towards the suction area at the largest volumes. The compressed medium will reach the consumer after volume reduction or pressure increase in the cell.

• Low overall design height
• Low overall weight
• Clear and easily accessible design with only one maintenance side
• Tolerant maintenance intervals
• Low vibration and noise emission
• Big temperature application area
• High availability
• Assured durance
• Engineering optimized for rail application
• Verification specified for rail application

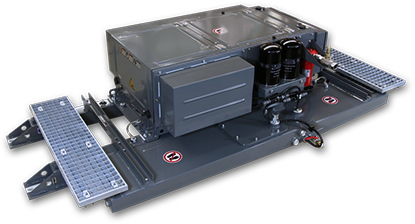

• Optimal for mounting below, in or on the vehicle
• Ideal as replacement compressor for competitor products
• Short maintenance times
• Long operating times
• Low operating costs
• Low LCC
• No forced-cooling required
• Minimum default risk by validation of components
